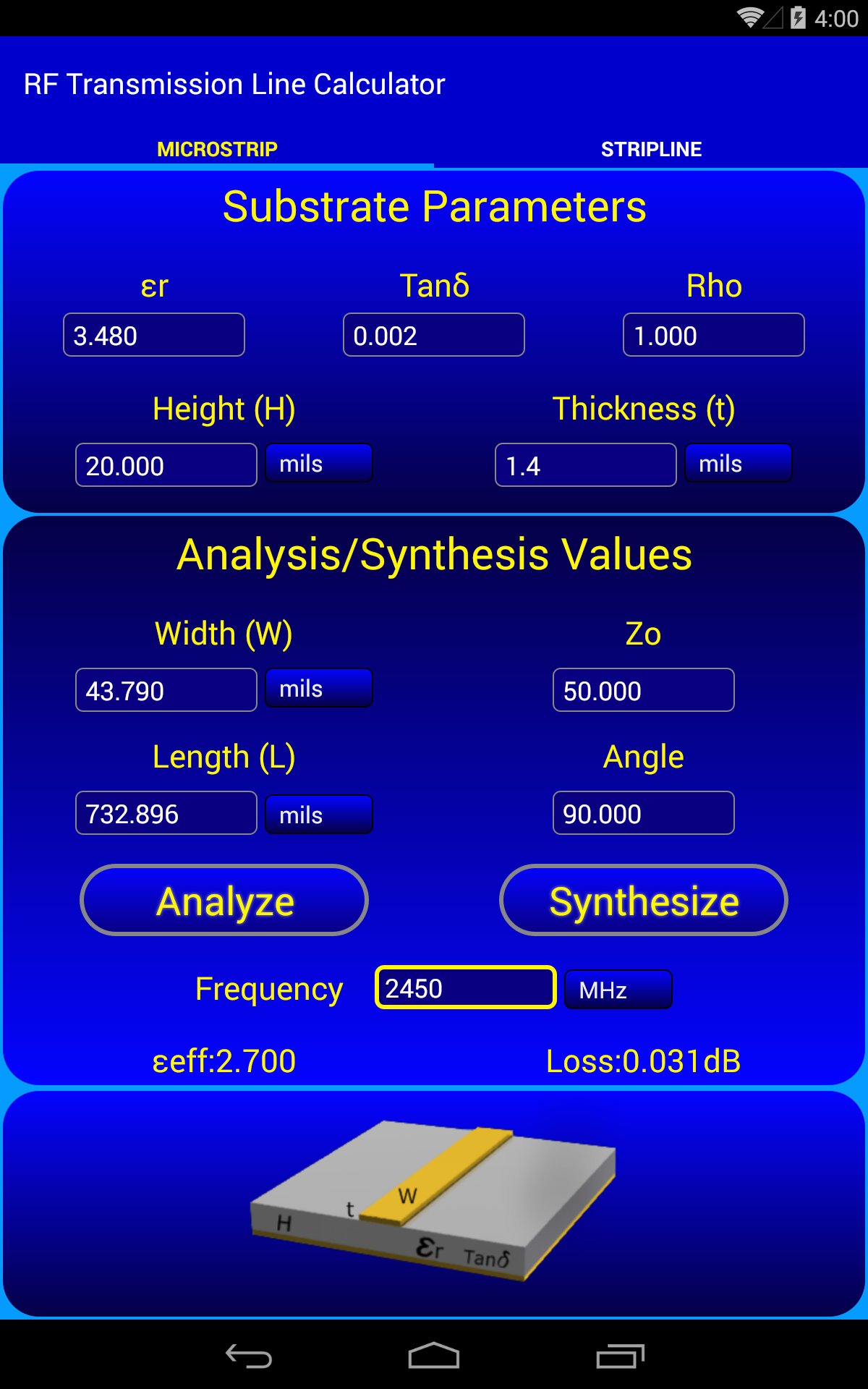

RF Transmission Line Calculator
A tool to analyze and synthesize RF and microwave transmission lines based on physical substrate parameters. This tool can be used to calculate line widths and thicknesses with a given characteristic impedance and wavelength. It can also be used to analyze the impedance and wavelength of an existing line by entering its width and length.
Features:
Microstrip Lines
Stripline
Coming soon:
Coplaner Waveguides
Coax
Latest Version
1.08Uploaded by
Nguyễn Bảo
Requires Android
Android 1.6+
Category
Free Tools AppContent Rating
Everyone
Report
Flag as inappropriateLast updated on Oct 21, 2015
Fixed crash for locales who use commas in place of decimal points. Sorry for the inconvenience.
Corrected copper conductivity for more accurate loss calculation.
