Beam Bending Calculator for steel and wood deflection, moment and shear
Beam Bending Calculator let you perform simple calculation and generate result within seconds.

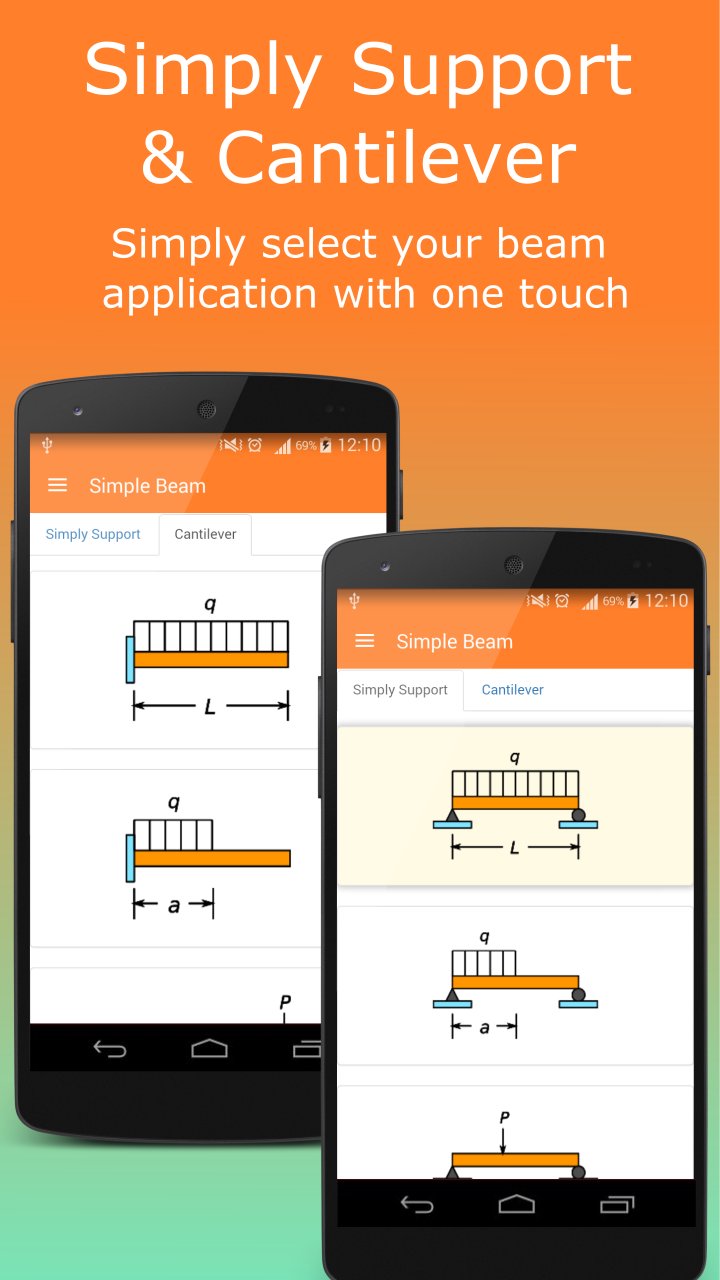

✓ Support Simple Support and Cantilever
✓ Support uniform/non-uniform distribute loads
✓ Support moments

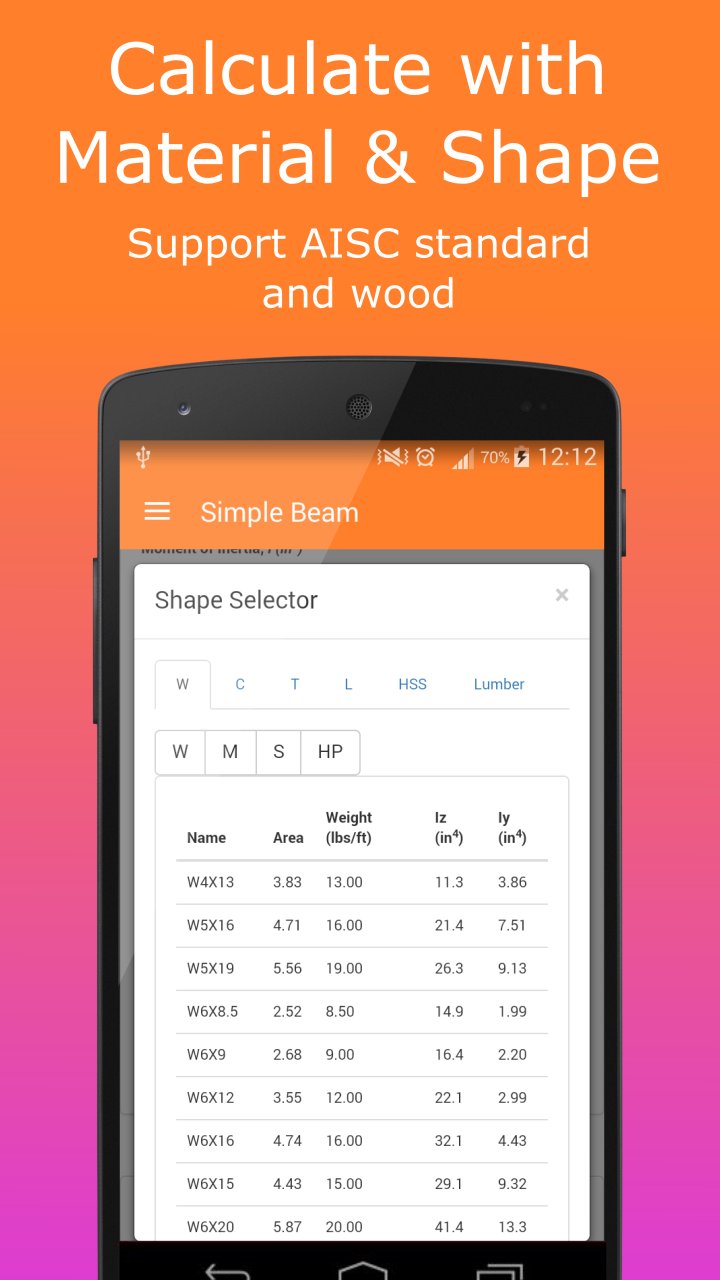

✓ Apply AISC (American Institute of Steel Construction) standard
✓ Wood supported
✓ Support Metric and English units

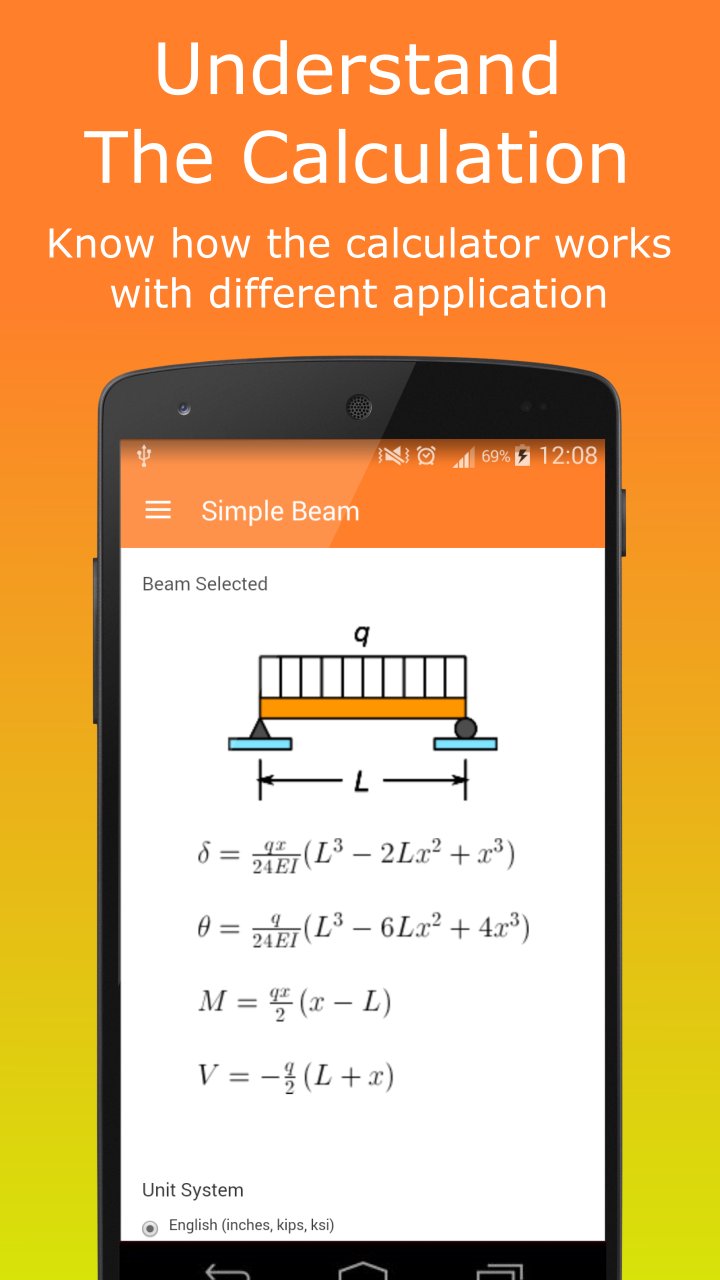

✓ Equation provided
✓ Results with max. displacement, shear and moment
✓ Visualize result with plot graph and table for displacement, slope, moment and shear
How to use:
1. Select a Simply Supported or Cantilever beam from the list
2. Choose a Unit System
3. Enter Constants, Dimensions and Loads
4. Click Calculate button to plot the deflection, shear and moment
Suggestions are welcome, mail to o3creator@gmail.com
Don't forget to rate us too :)
Follow us @ https://www.facebook.com/o3AppLab
Last updated on May 11, 2016
v1.3
Fixed navigation drawer for android version 5.0 & above
Minor improvement on beam bending calculator
